Two-Led Pilot Light

Description

This circuit is designed on request and can be useful to those whishing to have, say, a red LED illuminated when an appliance is on and a green LED illuminated when the same appliance is off. Any mains operated appliance can be monitored by this circuit provided a suitable mains switch, capable of withstanding the full load current, is used for SW1.When SW1 is closed, the load and D4 are energized, Q1 is saturated and shorts D3, thus preventing its illumination.

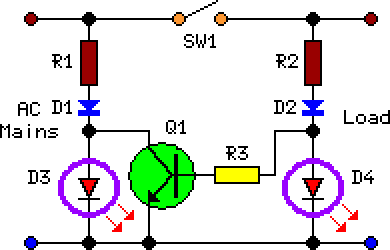

Circuit Diagram:

Two-Led Pilot Light-Circuit Diagram

Parts:

  • R1 = 27K-1W
  • R2 = 27K-1W
  • R3 = 6.8K
  • D1 = 1N4007
  • D2 = 1N4007
  • D3 = Green
  • D4 = Red Led
  • Q1 = BC337
  • SW1 = SPST Mains Switch

Notes:

  • Change R1 and R2 to 15K 1W for 115Vac mains operation.
  • SW1 must be capable of withstanding the appliance's full load current and voltage.
