Medium range transmitter
This is a medium range transmitter circuit diagram. This is also improved by changing the values of the resistor.

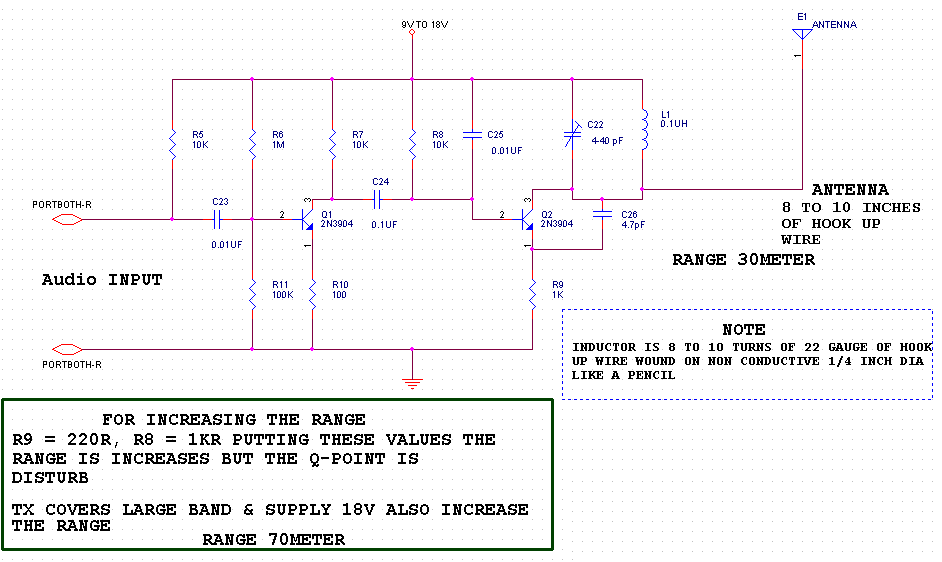

Circuit diagram
Download this schematic in Orcad format
author: Ashad Mustufa, mustufa66@hotmail.com
circuit from http://www.electronics-lab.com/
circuit from http://www.electronics-lab.com/
